SPECIFICATION:
Wire diameter
0.20-0.70
Max.winding speed
700rpm
Max.final coil.O.D
φ60-200
Wire spacing
Proportional linkage
Min.final coil.I.D
Φ35
Supply voltage
AC 220V（50Hz）
Max.finalcoil height
80
Mechanical dimensions
550×500×700
Controller storage capacity Programs
29 set
Weight
83kg
FEATURES:

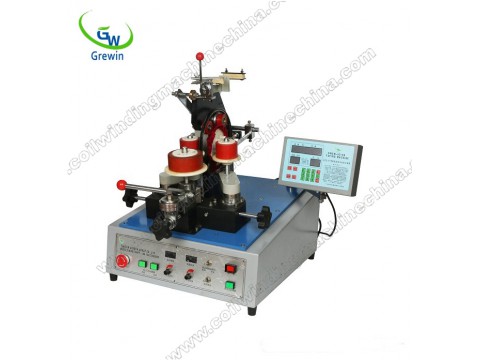

High Speed Toroid Coil Winding Machine high quality,easy to operate
Push button and footswitch controls.
Lock gap shuttles,with polished sliders,gentle on wire insulation.
High Speed Toroid Coil Winding Machine can quick change winding heads, core rotators.
Shuttles of High Speed Toroid Coil Winding Machine can be exchanged in minutes for maximum flexibility.
Compatible to imported winding heads.
ADVANTAGES:
Complete range of articles, large range of wire diameter, Multipurpose
Good compatibility, parts are interchangeable
High stability, part quality guarantee
High production efficiency, no wire breaking at high speed winding
Easy to operate, High learnability
High Speed Toroid Coil Winding Machine has CE certification
Free replacement of mainframe accessories in 1 year
The technicians experienced for up to 5 years
The storage ring has good material and long service life
APPLICATION:
Toroid Winding Machine is the best suited to toroidal inductor, toroidal transformers,toroidal current transformers,toroidal coil, toroid choke coil, power inductors,UPS inductor,converter inductor and heavy toroidal core etc.
PRACTICAL APPLICATION :
TRAINNING CUSTOMER TO OPERATE WINDING MACHNE :
1.All service engineers with 10 years experience are gotten special technology training, who can deal with various breakdown problem.
2.Guide the user to use accurately and how to maintain the High Speed Toroid Coil Winding Machine.
Provide free consultation about production process technology of electronic products.
3.In order to guarantee the machine used normally, we'd have training on how to operate, use and maintain our product by English manual, video, guiding on line.
PACKAGING:
Packaging Material: Carton/Wooden case with foam inside.
1.General package(Paper carton or plastic bag): For small euipped parts for Toroidal Transformer Winding Machine , Package it with form and pack paper to guarantee unbroken during the transport.
2.Wooden case package: For larger scale Toroidal Winding machine ,we have special skilled carpenter, who would make the proper wooden case with exact thickness,density,length. The up arrow ↑marked on the outer wooden case. Buffer material would be put in the wooden case to prevent crack and shock.
