SPECIFICATION:
Wire diameter
0.20-0.50
Max.winding speed
800rpm
Max.final coil.O.D
Φ60（110）
Wire spacing
Proportional linkage
Min.final coil.I.D
Φ7
Supply voltage
AC 220V（50Hz）
Max.finalcoil height
25
Mechanical dimensions
550×500×580
Controller storage capacity Programs
29 set
Weight
83kg
FEATURES:

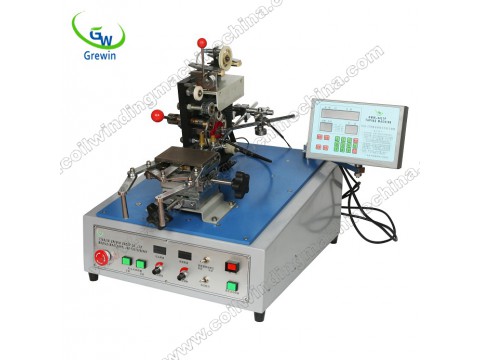

Small Inductor Winding Machine are fast machines for mass production of small inductive components.
Small Inductor Winding Machine utilize slider heads and belt heads to accommodate a wide range of core sizesand wire diameters.
Main drive and core rotation are accomplished by powerful,long life AC motors and proportionally linkedvariable speed controllers.
Accurately wire spacing by programmable controller.
Memory capacity accommedates 999 sequences of parameters with off-memory retention.
Small Inductor Winding Machine has Environmental protection, low noise, high efficiency;
Save data for more than one year, and have power protection function;
ADVANTAGES:
Complete range of articles, large range of wire diameter, Multipurpose
Good compatibility, parts are interchangeable
High stability, part quality guarantee
High production efficiency, no wire breaking at high speed winding
Easy to operate, High learnability
Small Inductor Winding Machines’ accessories general, easy to exchange
Stable machine performance
Packaging safety
APPLICATION:
Toroid Winding Machine is the best suited to toroidal inductor, toroidal transformers,toroidal current transformers,toroidal coil, toroid choke coil, power inductors,UPS inductor,converter inductor and heavy toroidal core etc.
PRACTICAL APPLICATION :
TRAINNING CUSTOMER TO OPERATE WINDING MACHNE :
1.All service engineers with 10 years experience are gotten special technology training, who can deal with various breakdown problem.
2.Guide the user to use accurately and how to maintain the Small Inductor Winding Machine.
Provide free consultation about production process technology of electronic products.
3.In order to guarantee the machine used normally, we'd have training on how to operate, use and maintain our product by English manual, video, guiding on line.
PACKAGING:
Packaging Material: Carton/Wooden case with foam inside.
1.General package(Paper carton or plastic bag): For small euipped parts for Toroidal Transformer Winding Machine , Package it with form and pack paper to guarantee unbroken during the transport.
2.Wooden case package: For larger scale Toroidal Winding machine ,we have special skilled carpenter, who would make the proper wooden case with exact thickness,density,length. The up arrow ↑marked on the outer wooden case. Buffer material would be put in the wooden case to prevent crack and shock.
