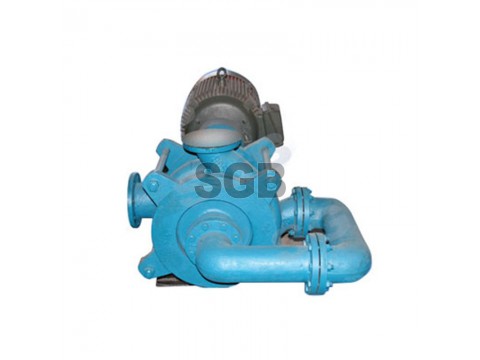

DG Series Filter Press Feed Pump
Product Description
- Single stage, single suction, horizontal centrifugal pump
- Wet parts such as casing, impeller, liner plate in anti-abrasion high chrome cast iron alloy.
- Horizontal-central-split container bracket easy for maintaining
- Packing or mechanical seal
- Protective shell surrounding the casing ideal for heavy duty
- Hydraulic optimization design for pressure filter, high-efficient, energy-saving and stable operation
Technical Specifications
Performance and Main Technical Datas of DG Single-Case Pumps(1)
|
Type |
Allowable |
Clear water performance |
Particle max.
Size handled (mm) |
Pump weight (kg) |
||||
|
Q Capacity (m3/h) |
H Head (m) |
n Speed (r/min) |
Max.eff. (%) |
(NPSH)r (m) |
||||
|
150DG-A50 |
55 |
62-279 |
9.3-44.6 |
490-980 |
65.7 |
2.1 |
30 |
1470 |
|
100DG-B45C |
90 |
53-233 |
13.1-66.6 |
700-1480 |
53.6 |
3.6 |
26 |
1290 |
|
100DG-B38CS |
90 |
40-171 |
18.5-94.1 |
700-1480 |
58.7 |
3.4 |
18 |
1420 |
Application
-Feeding pump for pressure filter in Coal washery, metallurgy dressing works, power plant ash-handling system
-Other slurry pumping condition
