The machine is suitable for precisely cutting off materials of the laminating board,flake board,MDF board,plyboard and woodbased panel board and the plastic board,bakelite plank,PVC,aluminium alloy etc.
It is the necessary precision panel equipment in the composite furniture manufacture and architecture decoration line
|

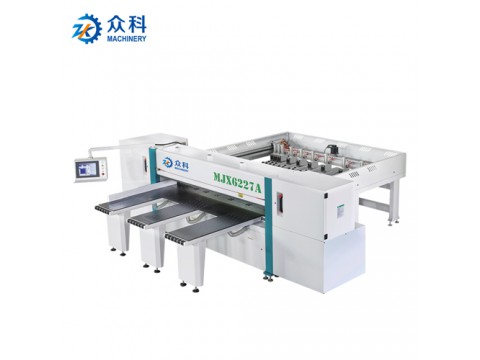

woodworking beam saw
|
||
|
MODEL
|
MJX6227A
|
MJX6233A
|
| Max cutting length | 2700mm | 3300mm |
| Max cutting thickness | 110mm | 110mm |
| Main sawblade dia. | Φ450×Φ80mm | Φ450×Φ80mm |
| Main saw speed | 4800rpm | 4800rpm |
| Scoring sawblade dia. | Φ180×Φ60mm | Φ180×Φ60mm |
| Scoring saw speed | 6500rpm | 6500rpm |
| Saw carriage backward speed | 70m/min | 70m/min |
| Main saw power | 18.5kw | 18.5kw |
| Scoring saw power | 1.1kw | 1.1kw |
| Saw carriage driving motor | 1.5kw (AC Servo) | 1.5kw (AC Servo) |
| Auotomatic feeding motor | 1.5kw (AC Servo) | 1.5kw (AC Servo) |
| High pressure blower motor | 4kw | 4kw |
| Air consumption | 5-7kg/cm2 | 5-7kg/cm2 |
| Total power | 27.7kw | 27.7kw |
| Overall dimension(L×W×H) | 5200×5600×1780mm | 6100×5600×1780mm |
| Dust-collecting mouth external dia. | 100mm | 100mm |
| Voltage frequency(V/HZ) | 380/50 (other voltage need customize) | 380/50 (other voltage need customize) |
