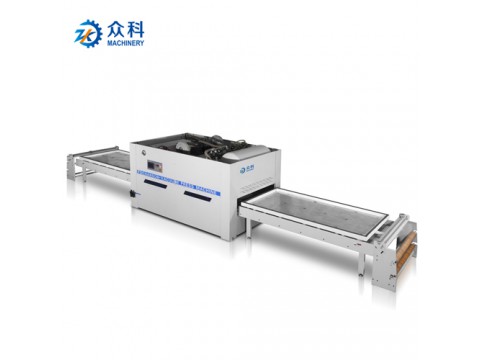

This machine can be used to paste PVC and leather on furniture, cabinets,speakers, relief doors,decoration panels for walls and other abnormal decoration shapes,it can also work with hot transfer. This machine has two working table, and the size of working table could be customized by customer's requirement.Heating by infrared quarzt tubes. This machine is suitable for paste 0.08-0.35mm film,when the process is finished, it will cooling the work-pieces.
Specification
|
SPECIFICATION OF VACUUM PRESS MACHINE
|
|
|
Model
|
CH-2500B
|
|
Worktable size(L*W*H)
|
2500*1250*75 mm
|
|
Area of service platform
|
2440*1100*50 mm
|
|
Electrothermal power
|
27kw
|
|
Vacuum pump power
|
2.2kw
|
|
Vacuum pump size
|
100L
|
|
Working tables
|
2PCS
|
|
Operation system
|
PLC touch screen
|
|
Voltage
|
380v 50hz 3phase
|
|
Net weight
|
2000kgs
|
|
Overall size
|
9400*1800*1700 mm
|
Product Show
