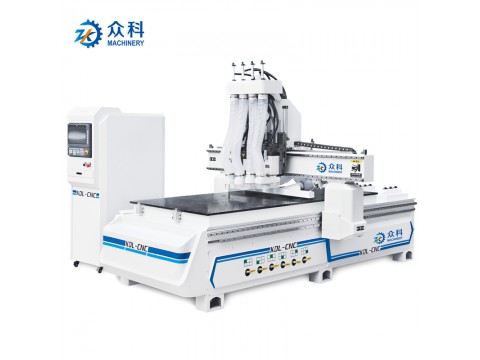

Vertical Panel Saw CNC Router/ Cutting Machine For Custom Panel Furniture

Click image to view original image
Brand: ZK/CHANSON
working area stroke: 1220×2440mm
Spindle power: 6kw*4
Max. cutting speed: 30m/min
Price: 14500.00USD/set
Min.Order: 1 set
Supply 20 set
Delivery: Shipment within 15 days since the date of payment
Address: China
Valid until: Never Expire
Updated on: 2021-01-11 14:04
Hits: 59352
Buy
Company Detail


Details

Introduction:

Perfect for large or workpieces of panel or solid wood furniture and doors,artificial marble countertops,light metal pieces.

SPECIFICATIONS FOR MK30B CNC Router
Worktable size
1300×2550mm
X , Y, Z working area stroke
1220×2440×30mm
Processing precision
±0.1mm
Worktable
Vaccum worktable

X,Y,Z Transmission
X,Y Axis: Taiwan rack gear
Z Axis: Taiwan TBI ball screw
Max. traverse speed
60m/min
Max. cutting speed
30m/min
Spindle power
6kw×4 air-cooling spindle
Spindle speed
18000rpm
Operation instruction
G-code,S-code,T-code,F-code
Working voltage
AC380V/50Hz
Operation system
Baoyuan servo(Taiwan)
Vacuum pump power
water cooling 7.5kw
Total power
28.9kw
Weight
3000kg
Overall dimensions
3600×2300×2150mm

Main Features

1) Machine body made by cast steel body with aging & tempering treatment, strong and durable.

2) X,Y,Z transmission use Taiwan rack gear .

3) Electrical components: Adopts Schneider brand safety, stable and reliable

4)Operation system:Baoyuan servo(Taiwan) high efficiency.

Details Images
Sample Photo
